Single-use adherent culture cartridge for the Stämm HTB. High surface-to-volume ratio in one closed vessel, with uniform conditions across the full growth surface.
Description

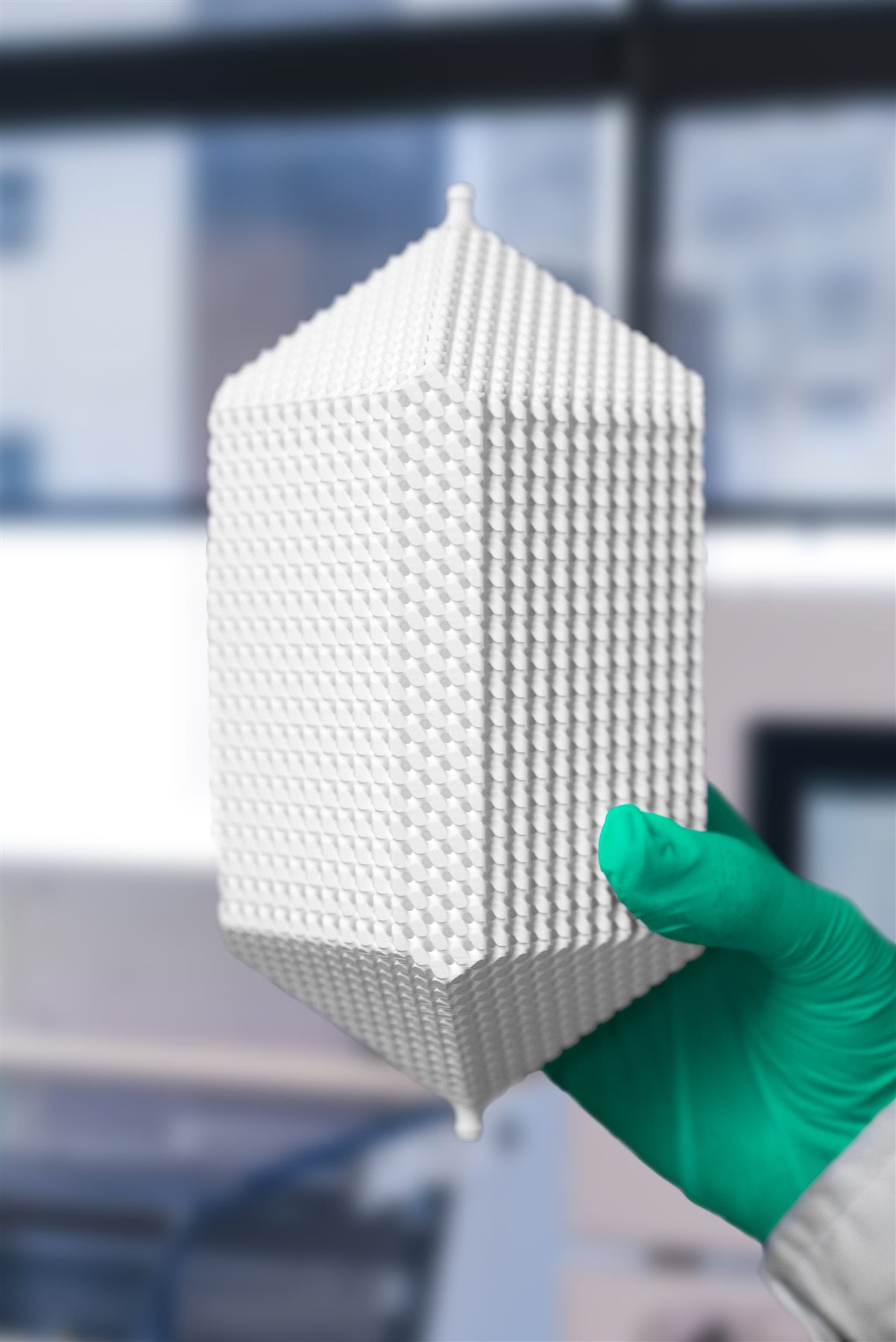

Adherent Cell Cartridge. 60 mL working volume, 1,440 cm² growth surface, sterile.

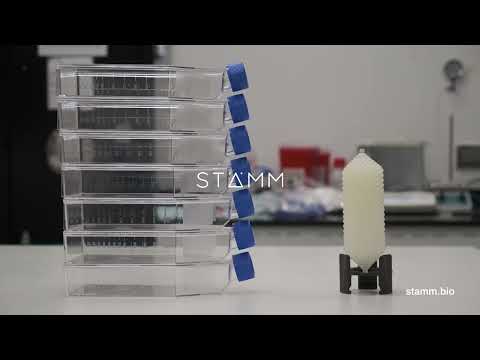

2.4 m² of growth surface per liter, concentrated into a single closed 60 mL unit. Equivalent to approximately 8 standard T175 flasks in one vessel, with one incubator footprint.
The same gyroid-structured bubble-free bioreactor used in the suspension cartridge carries the microchannel network here too, its geometry inspired by the efficiency of the human vascular system, so nutrients and gas flow organically to every point on the growth surface. Delivery is uniform across the full surface, minimizing dead zones.
Flow is laminar and bubble-free throughout. Media exchange is continuous and automated.
Formulation, feeding and harvest all run through the same automated closed system, cutting the touchpoints where contamination and operator variation enter a culture. Less artisanal, more repeatable.
The cartridge arrives pre-assembled and pre-sterilized.
The Adherent Cell Cartridge kit includes:
- Bubble-free bioreactor: gyroid microchannel architecture, gas-permeable / liquid-tight
- Formulation consumable: 6 media bags
- Tubing set
- Formulator flask
- 3 inoculation kits
- 3 gas control consumables
- Integrated ports for sampling, inoculation and harvest
- LOT-level traceability
- Single-use, tool-free installation
- 60 mL working volume, 1,440 cm² growth surface
- Suitable for adherent cell types
Handling & safety
- Single use only.
- Requires a Stämm HTB Production Unit. One cartridge per run.
- Each unit arrives sterile and individually packed.
Details
| Working volume | 60 mL |
| Growth area | 1,440 cm² |
| Surface-to-volume ratio | 2.4 m²/L |
| Cell type | Adherent |
| Operating mode | Batch and perfusion |
| Gas exchange | Diffusion (PDMS membrane), no sparging |
| Containment | Self-contained |
| Surface treatment | Custom coating, tailored to the cell line (adherent and suspension supported in the same device) |
| Material | Biocompatible resin, PDMS-coated |
| Animal-origin free | Yes |
| Packaging | Individually packed |
| Traceability | Full traceability by LOT number |
| Shelf life | 1 year |
| Biocompatibility | Passes standard biocompatibility testing |
| Disposal | Autoclave, then discard in a biohazard pouch as pathogenic waste |
| Device requirement | Requires Stämm HTB Production Unit |
| Product code/SKU | BFB-106 |
| Order format | Single-use cartridge, sold in kits of 6 or 12 |
| Country of origin | Argentina |
Every unit includes in-person training on the machine, unrestricted technical maintenance and support, repairs, and any other assistance required to keep the HTB running properly. Support is provided worldwide for the life of the instrument.
